MXF545-XC – MX Fuel™ Electrofusion machine
MILWAUKEE® MX FUEL™ ELECTROFUSION PROCESSOR (MXF545-XC)
EQUIPMENT REDEFINED. TRADE FOCUSED. SYSTEM WIDE.
The MX FUEL Equipment System revolutionizes the light equipment market by delivering the performance, run-time and durability demanded by the trades without the hazards associated with emissions, noise, vibration and the frustrations of gas maintenance. This completely compatible system goes beyond the limitations of gasoline and power cord units, utilizing the industry’s most advanced batteries, motors and electronics to deliver a best-in-class experience for users. This is Equipment Redefined.
Key Features & Benefits
- UP TO 40% LIGHTER, EASIEST TRANSPORT
- Designed to move with your work
- Top handle, balanced design for single handed carry
- INSTANT SETUP, NO GENERATOR
- Eliminates extension cords for instant setup
- Removes the need for generator maintenance and servicing
- FUSING SIMPLIFIED
- Customizable reporting and on-tool fusion log review
- Wireless barcode scanner for easier access
Product Features & Highlights
- REDLITHIUM™ FORGE™ XC8.0 BATTERY PACK: Fits MX FUEL Equipment (Most Power, Fastest Charging, Longest Life)
- REDLINK PLUS™ INTELLIGENCE
- LAST FUSE TECHNOLOGY: Clear indication of remaining fuses (e.g., 50 Fuses Remaining)
- Interchangeable Fusion Cable: Reach up to 15 ft for maximum versatility
- Wireless Barcode Scanner: Best access
- LCD Display Screen: Unmatched visibility in all environments
- Carrying Handle: Single-handed carry for easiest transport
- Battery Life Indicator: Clear indication of remaining battery life
- ONE-KEY™ COMPATIBLE: For secure tool tracking and tool management
- COOL-CYCLE™ CAPABLE: Feature works with COOL-CYCLE capable batteries & chargers
Specifications
| Wireless Barcode Scanner | Yes (Fully Rechargeable) | Height | 13.7″ |
| Calibration | 3 Years | Depth | 23.9″ |
| Calibration Lockout | Yes, with 90-Day Warning | Width | 10.4″ |
| GPS | Yes | Operating Temperature | 0°F – 125°F |
| ONE-KEY Compatible | Customizable Reporting | Charge Time | 65 Min (as configured) |
| Data Logging | Yes, USB or Wireless Download | Voltage Output | 8V – 48V |
| Weight (w/ battery) | 34 lbs | Badge Scanning | Yes (ISO 12176-3) |
| Fusion Tip Sizes | 4 mm & 4.7 mm | Manual Barcode Entry | Yes |
| Lead Options | 15 ft. Field Replaceable | Ambient Temperature Sensor | Yes |
| Warranty | 2 Year Machine, 2 Year Battery | Coupling Compatibility | ISO 12176-2, ASTM F2897 |
Standards
- Meets: ISO 13950, ISO 12176-2, ISO 12176-3, ISO 12176-4, ASTM F2897, IEC 60335-1
- Designation: P, 2US, VADX
Run-Time
Up to (2) 8″ Fusions, (40) 2″ Fusions, and (150) 3/4″ Fusions (w/ Kitted MX FUEL REDLITHIUM FORGE XC8.0 Battery Pack)
- 8″ Pipe: 2 Fusions per charge
- 2″ Pipe: 40 Fusions per charge
- 3/4″ Pipe: 150 Fusions per charge

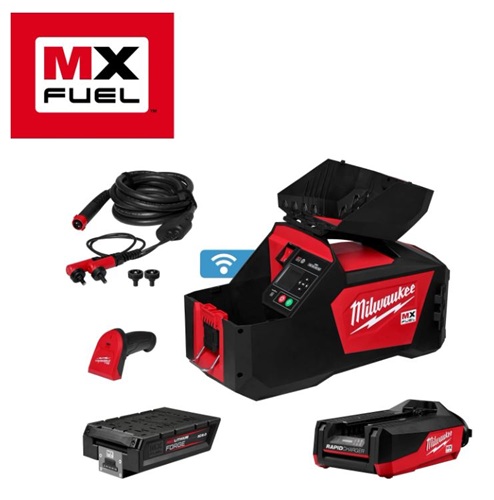

Kit Includes (MXF545-XC)
- MXF545-0 Electrofusion Processor
- 15 ft Electrofusion Leads
- MX FUEL REDLITHIUM FORGE XC8.0 Battery Pack
- MX FUEL Rapid Charger
- Barcode Scanner
- (2) Fusion Tips
Available Accessories
- Milwaukee MX FUEL 15 ft Electrofusion Leads (48-08-5415)
ONE-KEY™ Capabilities
TRACK. MANAGE. REPORT.
- Manage your tool and view its location
- Lock & Geofence your asset remotely
- Event based GPS reporting
